Overview
Creating a social media application that can handle millions of users, real-time data, and high traffic is a significant technical challenge. It requires a resilient, scalable, and highly available infrastructure. Instead of building from scratch, modern platforms leverage cloud services to handle the heavy lifting. This blog post will deconstruct a sample AWS architecture for a social media app similar to Twitter, explaining how each component works together to create a robust system.

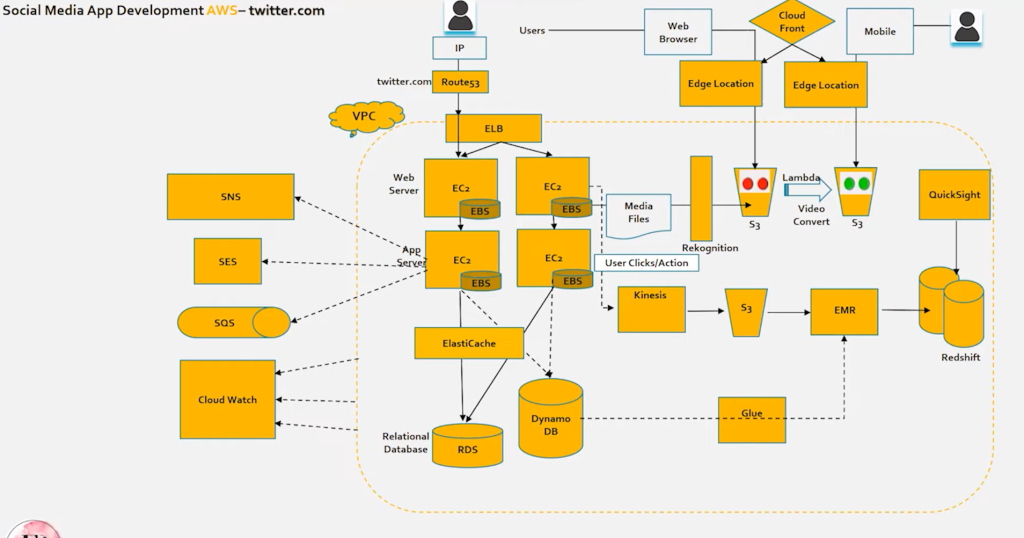

Architecture Diagram

1. The Core Infrastructure: Handling User Traffic
The user’s journey begins here. A solid foundation is crucial to ensure low latency and high availability.
- Amazon Route 53: As the entry point, Route 53 is a DNS service that directs user requests from
twitter.com
to the nearest edge location. - AWS CloudFront & Edge Locations: CloudFront serves as a Content Delivery Network (CDN). It caches static content like images, JavaScript, and CSS files at Edge Locations around the world. This minimizes latency by serving content from a location closer to the user, providing a fast and responsive experience.
- Elastic Load Balancer (ELB): All dynamic user requests that aren’t cached are routed through an ELB. The ELB distributes incoming traffic across multiple Amazon EC2 instances, preventing any single server from becoming overwhelmed. This is key to maintaining performance during traffic spikes.
- Amazon EC2 & EBS: The EC2 instances are the heart of the application, running the web and application servers. Each instance uses Amazon Elastic Block Store (EBS) as a durable, block-level storage volume for the operating system and application data. Using multiple EC2 instances behind an ELB ensures high availability. If one instance fails, the others can take over seamlessly.
2. Data Management & Caching
A social media platform’s most valuable asset is its data. The architecture uses a mix of databases and caching layers to manage different types of data efficiently.
- Amazon RDS: For structured, relational data such as user accounts, relationships, and application-specific settings, Amazon Relational Database Service (RDS) is the perfect choice. It provides a managed database service, freeing the team from handling tasks like backups, patching, and scaling.
- Amazon DynamoDB: For high-volume, non-relational data like user profiles, real-time activity feeds, and session data, Amazon DynamoDB is used. This NoSQL database is designed for massive scale and provides single-digit millisecond latency, which is essential for a fast user experience.
- Amazon Elasticache: To further reduce the load on the databases and improve application response times, Amazon Elasticache is implemented. It acts as an in-memory cache, storing frequently accessed data so the application doesn’t have to query the database every time. This is critical for serving popular content or user profiles quickly.
- Amazon S3: Simple Storage Service (S3) is the go-to service for storing unstructured media files like user photos, videos, and avatars. It’s highly scalable, durable, and cost-effective, making it ideal for the massive volumes of media generated by users.
3. Event-Driven Services & Analytics Pipeline
Modern social media platforms are highly event-driven, processing user actions and generating insights in real time.
- AWS Kinesis: User actions and clicks are streamed into Kinesis, a real-time data streaming service. This ensures that every action is captured and sent down the data pipeline for analysis.
- AWS Lambda: This is a serverless compute service that runs code in response to events. In this architecture, a Lambda function is triggered to handle video conversion from S3.
- Amazon Rekognition: For image and video analysis (e.g., content moderation or tagging), Amazon Rekognition is integrated. It automatically identifies objects, people, text, and activities in media files.
- Amazon EMR & AWS Glue: The raw data streamed to S3 from Kinesis is processed by an Amazon EMR (Elastic MapReduce) cluster. AWS Glue is used as a data integration service to prepare and load the data. This powerful combination is perfect for large-scale data processing and transformation.
- Amazon Redshift & Amazon QuickSight: The processed data is then loaded into Amazon Redshift, a fully managed data warehouse. Amazon QuickSight, a business intelligence service, is then used to visualize the data, create dashboards, and provide valuable business insights into user behavior and engagement.
4. Support Services & Monitoring
A complex application requires a set of services to handle messaging, notifications, and continuous monitoring.
- Amazon SNS & SQS: For asynchronous messaging, the architecture uses Simple Notification Service (SNS) and Simple Queue Service (SQS). SNS can send push notifications and text messages, while SQS is used to decouple application components by queuing messages for later processing.
- Amazon SES: The Simple Email Service (SES) is used for sending a high volume of emails, such as account verifications and password resets.
- Amazon CloudWatch: CloudWatch is the primary monitoring service. It collects metrics and logs from all the AWS services, allowing administrators to monitor system performance, set alarms, and troubleshoot issues in real time.
- Amazon VPC: The entire architecture is contained within a Virtual Private Cloud (VPC), providing a logically isolated network environment for enhanced security and control.
Conclusion
This architecture diagram provides a blueprint for a resilient and highly scalable social media platform. It demonstrates how a combination of purpose-built AWS services—from foundational compute and storage to advanced analytics and machine learning—can be used to build a robust system capable of handling the demands of millions of users.
