🧠 Overview: How reCAPTCHA v3 Works

---

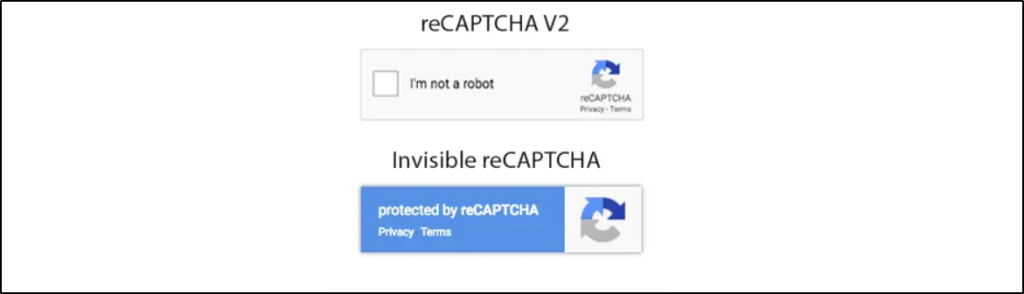

Unlike v2 (which uses a checkbox), reCAPTCHA v3 is invisible and works by:

• Running JavaScript on the frontend to assess user behavior.
• Returning a score (0.0 to 1.0) representing how likely the user is a bot.
• Backend (Spring Boot REST API) verifies the token with Google and takes action based on score.

---

🧱 Architecture Components

---

• 🔹 Frontend (Browser)
• Loads Google reCAPTCHA v3 script
• Gets site key from HTML/meta
• Calls grecaptcha.execute() to get a token
• Sends the token to the Spring Boot backend
• 🔹 Spring Boot Backend

---

• Exposes REST API /validate-recaptcha
• Uses secret key to verify token with Google server
• Receives response: { success, score, action, challenge_ts, hostname }
• Takes action (allow, block, log, or flag)

---

• 🔹 Google reCAPTCHA API

---

• Validates the token
• Sends score (0.0 = likely bot, 1.0 = human)

---

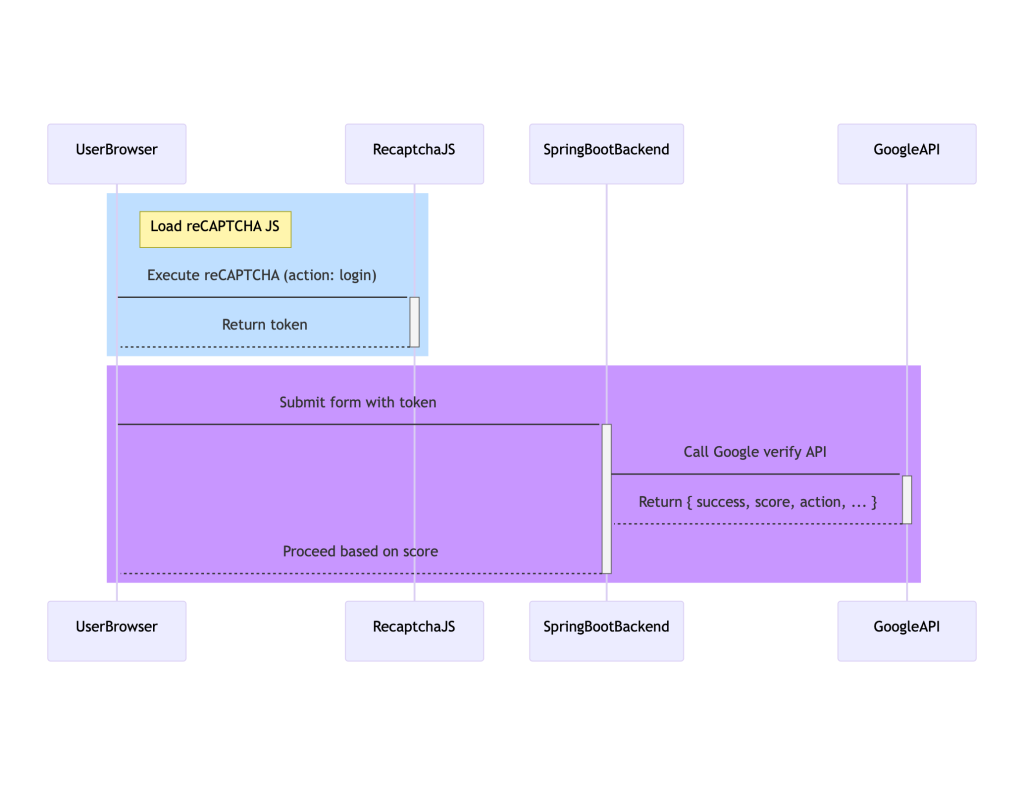

🧩 reCAPTCHA v3 Integration Flow Diagram

---

---

💻 Sample Spring Boot Integration

---

✅ Backend Config

---

application.properties

recaptcha.secret.key=YOUR_SECRET_KEY
recaptcha.verify.url=https://www.google.com/recaptcha/api/siteverify
recaptcha.threshold=0.5

---

🧩 REST Controller

---

@RestController
public class RecaptchaController {

    @Autowired
    private RecaptchaService recaptchaService;

    @PostMapping("/validate-recaptcha")
    public ResponseEntity<String> validate(@RequestBody RecaptchaRequest request) {
        boolean isHuman = recaptchaService.verify(request.getToken(), request.getAction());
        if (isHuman) {
            return ResponseEntity.ok("User is human");
        } else {
            return ResponseEntity.status(HttpStatus.FORBIDDEN).body("Bot detected");
        }
    }
}

---

🛠 Service Layer

---

@Service
public class RecaptchaService {

    @Value("${recaptcha.secret.key}")
    private String secretKey;

    @Value("${recaptcha.verify.url}")
    private String verifyUrl;

    @Value("${recaptcha.threshold}")
    private double threshold;

    public boolean verify(String token, String expectedAction) {
        RestTemplate restTemplate = new RestTemplate();

        String body = "secret=" + secretKey + "&response=" + token;
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.APPLICATION_FORM_URLENCODED);

        HttpEntity<String> request = new HttpEntity<>(body, headers);
        ResponseEntity<RecaptchaResponse> response = restTemplate
            .postForEntity(verifyUrl, request, RecaptchaResponse.class);

        RecaptchaResponse recaptcha = response.getBody();

        return recaptcha != null && recaptcha.isSuccess()
                && expectedAction.equals(recaptcha.getAction())
                && recaptcha.getScore() >= threshold;
    }
}

---

🔍 RecaptchaResponse DTO

---

@Data
@JsonIgnoreProperties(ignoreUnknown = true)
public class RecaptchaResponse {
    private boolean success;
    private double score;
    private String action;
    private String challenge_ts;
    private String hostname;
    private List<String> errorCodes;
}

---

⚙️ Internals of reCAPTCHA Score Calculation

---

• 🎯 What reCAPTCHA Looks At:

• Mouse movement, click/touch behavior
• Time taken to interact
• Cookies/session context
• Known patterns of bot behavior

• Google assigns a risk score (0.0–1.0):

• >= 0.7: likely human
• 0.3 – 0.7: suspicious (grey area)
• < 0.3: likely bot

---

✅ Best Practices

---

Area	Best Practice
Frontend	Use meaningful action names (e.g., login, signup)
Backend	Always validate token server-side
Security	Don’t trust score blindly; combine with login throttling or IP checks
Monitoring	Log low-score cases for auditing and improvement
Quota	Monitor API usage via Google Cloud Console

---

📊 Real-world Decisioning Based on Score

---

Score	Action
≥ 0.7	Allow user through
0.4 – 0.7	Show CAPTCHA challenge or OTP
< 0.4	Block or flag as bot

---

🧾 Summary

---

• reCAPTCHA v3 provides risk scores instead of challenges.
• Your frontend generates a token, backend verifies with Google, and makes decisions based on score.
• Integration with Spring Boot is simple using a REST controller and service.
• Monitor score trends and API quota to handle traffic intelligently.

---
